| SKU: | 10962 |
| MPN: |
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO Series | |

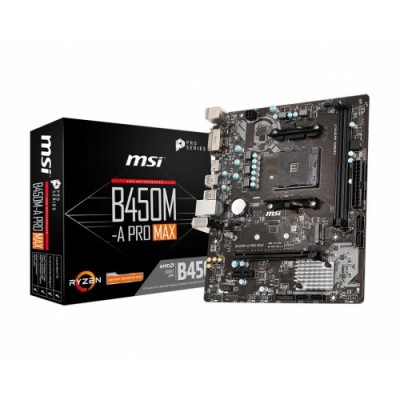

| Model | B450M-A PRO MAX AMD AM4 Motherboard | |
| Supported CPU | ||
| CPU Type | DDR4 | |
| Chipsets | ||
| Chipset | AMD B450 Chipset | |
| Memory | ||
| Number of Memory Slots | Dual Channel | |
| Maximum Memory Supported | 32GB | |
| Channel Supported | DDR4 | |
| Graphic | ||
| Graphic | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
|
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors - Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 2 x PCIe 2.0 x1 slots |
|
| Storage | ||
| Storage | AMD B450 Chipset : - 4 x SATA 6Gb/s ports - Supports RAID 0, RAID1 and RAID 10 - 1x M.2 slot (Key M) - Supports PCIe 3.0 x4 and SATA 6Gb/s - 1st, 2nd and 3rd Gen AMD Ryzen - Ryzen with Radeon Vega Graphics - 2nd Gen AMD Ryzen with Radeon Graphics - Supports PCIe 3.0 x2 and SATA 6Gb/s - AMD Athlon with Radeon Vega Graphics - A-series - Athlon X4 - Supports 2242/ 2260/ 2280/ 22110 storage devices |
|
| Network | ||
| LAN | Realtek 8111H Gigabit LAN | |
| Audio | ||
| Audio | 8-Channel(7.1) HD Audio with Audio Boost | |
| Ports | ||
| Back Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Internal Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumperection) |
|
| Warranty | ||
| Warranty | 03 Years | |
| Form Factor | ||
| Form Factor | m-ATX | |
